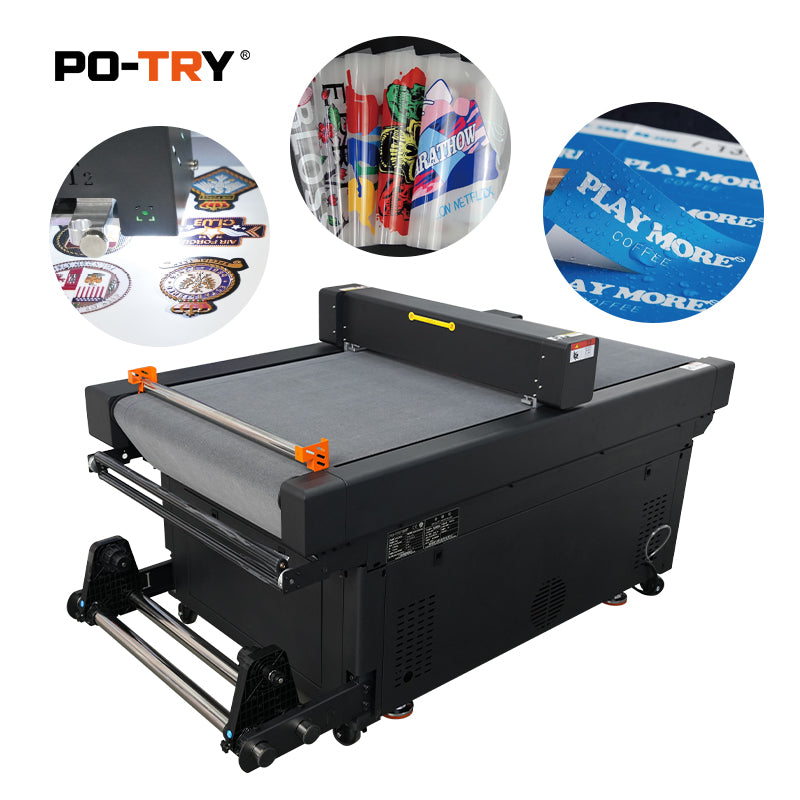

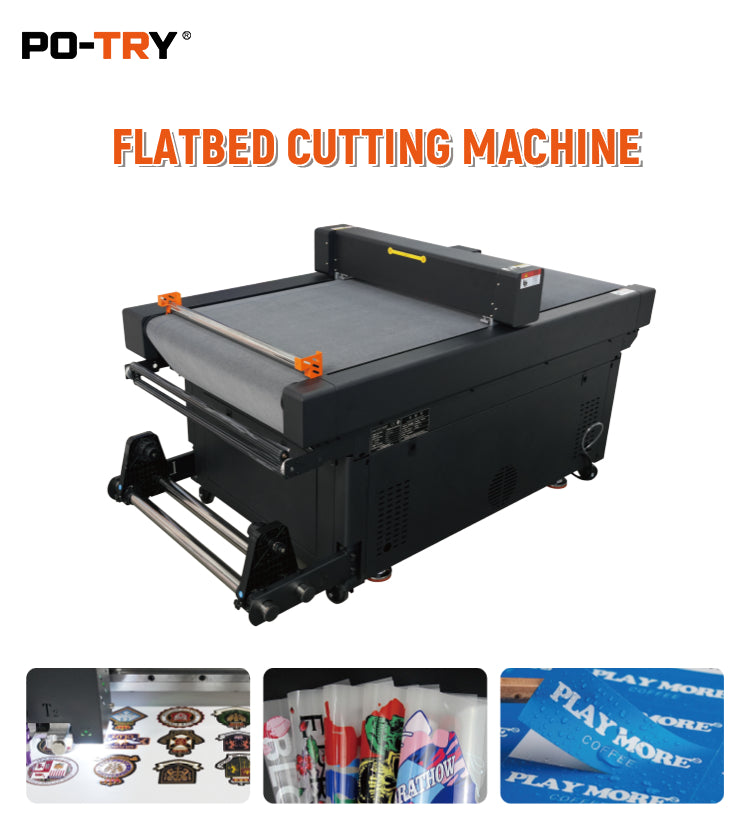

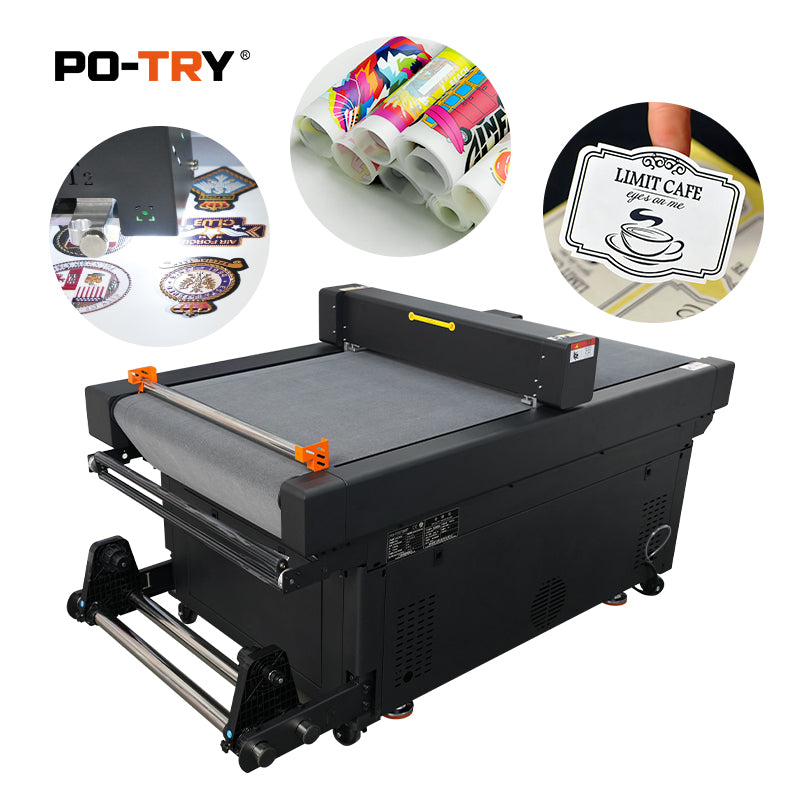

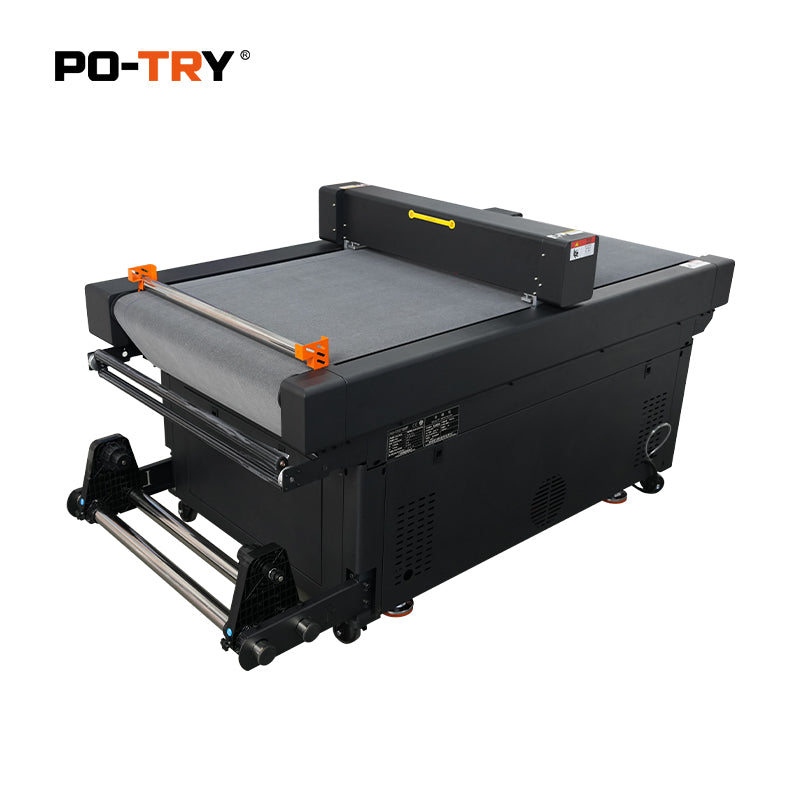

60CM Flatbed Cutting Machine
Couldn't load pickup availability
| Model | FC6011U |
| Cutting speed | Straight line:1000mm/s Curve:800mm/s |
| Cut thickness | ≤1.2mm |
| Cutting pressure | 1000g |
| Cutting material | DTF Film, 3D UV TPU |
| Cutting method | Physical Half-Cut/Full-Cut |
| Pen/Blade Type | Double blade structure |
| Fixing method | Rolling felt/vacuum adsorption |
| Drive method | High-speed servo driver |
| Mechanical Resolution | 0.05mm |
| Transmission interface | Offline Printing via USB drive, Ethernet Port (wi-Fi optional) |
| Software Format | RIIN、PO-TRY X |
| Screen size | Touch display |
| Voitage/Power | 220V±10%/50HZ |
| Cutting Area | 620mm*1080mm(Scrollable) 680*1150(Maximum stroke) |
| Knife (blade) | Cutting tool/creasing tool |

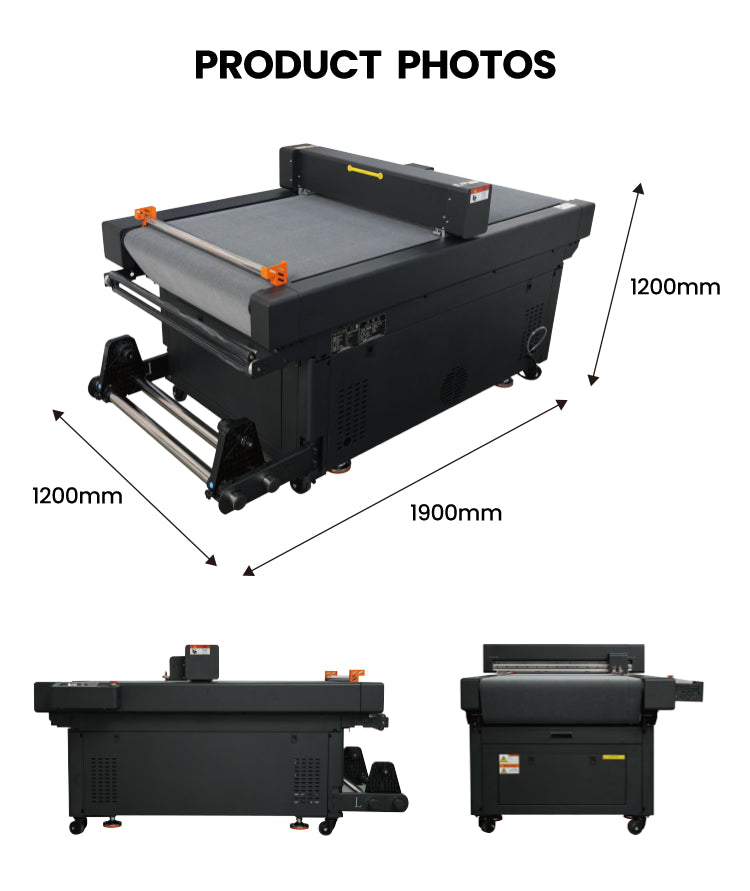

| Packaging Dimensions | L1900mm*W200mm* H1200mm |
| Net weight | 350KG |
| Gross Weight | 400KG |
Precision Drive System
Servo motor with imported linear guides and intelligent AI algorithms for an optimized cutting experience.
Camera Positioning
Real-time tracking system precise for accurate recognition and cutting of complex patterns.
Auto Contour Extraction
Enables easy contour cutting without professional operators, lowering the skill barrier.
Patented Platform Design
Multi-zone vacuum with low noise and strong suction to hold sampce securely.
LCD HD Touchscreen
User-friendly interface for clear visuals and convenient control.
Multiple Transmission Interfaces
Supports USB drive and Ethernet for efficient cutting in various applications.
Automatic Feeder
Seamlessly enables long-format cutting with real-time camera tracking for precise contour cutting.
Advanced Servo Motion Control
Self-developed multi-axis system for precise, smooth curves and powerful performance.
Streamlined Sheet Metal Body
Thoughtfully designed with a technological and aesthetic texture.
